Product Introduction

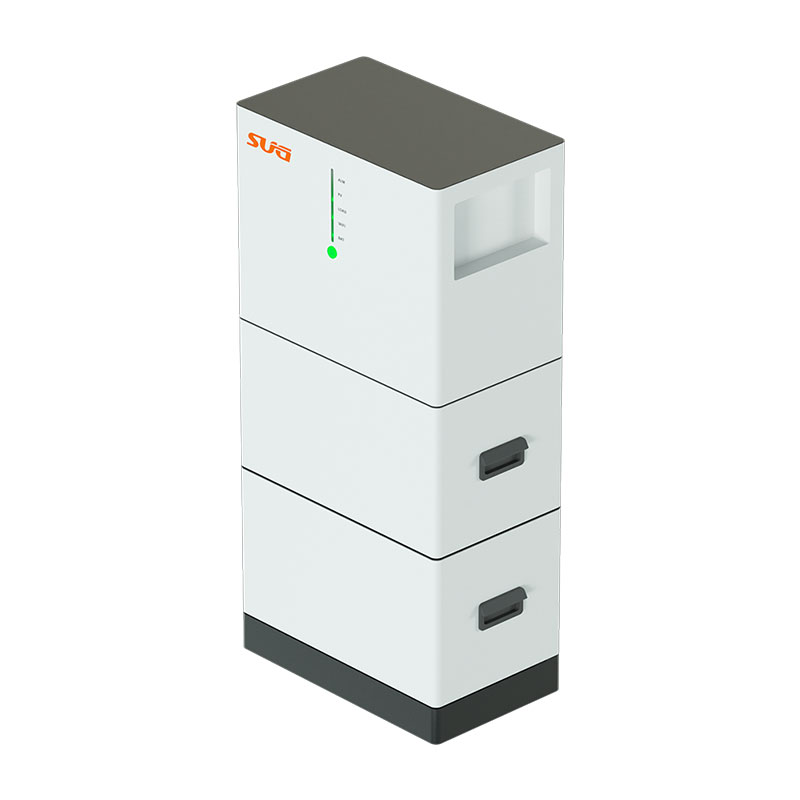

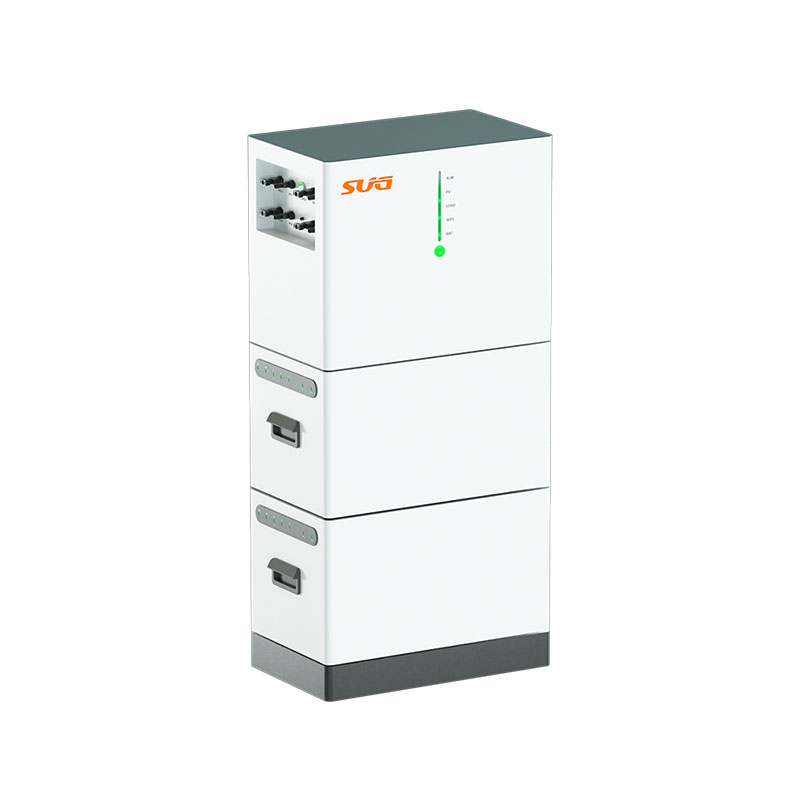

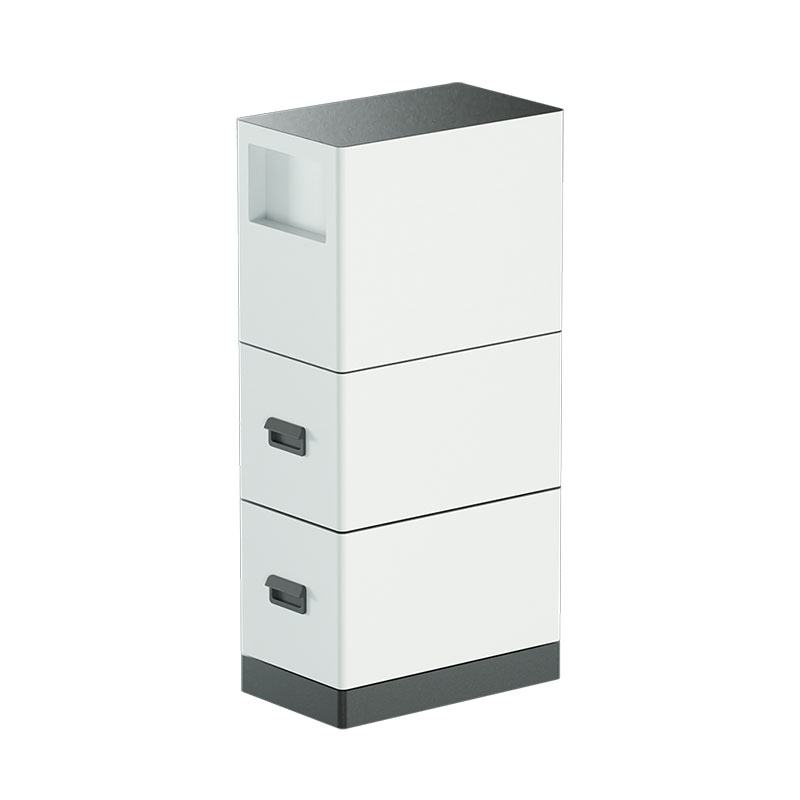

SBMY All-in-One machine, which is used in Balcony solar power system. lt is a micro solar power generation system integrating batteries and PV control modules comprised of a battery section and a PV control section, it forms a complete set of balcony PV energy storage system in conjunction with PV modules, micro-inverters, smart electricity meters, and the power grid. This product can efficiently store the direct current generated by solar panels in the storage battery and connect to the electrical loads and the power grid through the micro-inverter, providing people with green electric energy while effectively addressing the key technical challenges such as the usability, safety, and service life of the PV energy storage system.
Product Features
1. Grade A LiFePO4 cell
2. Wi-Fi communication control
3. Parallel support for 5PCS
4. 6000 cycles @ DOD80%
5. Convenient to move and freely combine
6. Power quantification
Products Specification
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
Products Specification
| Battery | |
| Battery type | LiFePO4 |
| Rated voltage | 51.2V(16S) |
| Battery capadity | 2.56kWh |
| Cycle life | 6000(25℃) |
| Discharge depth | 90% |
| Maximum charging current | 60A |
| DC input (PV input) | |
| Maximum input power | 800Wx2 max |
| Mppt voltage range | 18V-60V |
| Start-up voltage | 12V |
| Operating voltage range | 12V-60V |
| Input conversion efficiency) | 98% Max |
| Maximum input voltage | 60V |
| Maximum input current per channel | 25A |
| Maximum input short-circuit protection current (transient) per channel |
90A |
| Number of MPPT tracking | 2 |
| MPPT tracking efficiency | 99% |
| DC output (INV output) | |
| Maximum output power | 800Wx2 Max |
| Output conversion efficiency | 98% Max |
| Operating voltage range | 18V-55V |
| Maximum output voltage | 55V |
| Maximum output current per channel | 28 |
| Maximum input short-circuit protection current (transient) per channel |
90A |
| General parameters | |
| Product dimensions | Control module (with battery): 420 * 280 * 305.5mm Battery: 420 * 280 * 204mm Base: 420 * 280 * 32.5mm |
| Packaging dimensions | 520mmx270mmx310mm |
| Net weight | ≈20kg |
| Maximum number of external parallel slave battery packs |
5 PCS |
| Capacity of a single slave battery pack | 2.56kWh |
| Charging operating temperature | 0℃-55℃ |
| Discharging operating temperature | -20℃-60℃ |
| Protection grade | Ip65 |
| Communication mode | WIFI |
| Heat dissipation mode | natural cooling |
